Inertial navigation solution AGM-PS.M

Compact and lightweight solution for positioning UAVs, vehicles, aerial surveying systems, laser scanners and other equipment, including in conditions of poor GNSS signal.

AGM-PS.M is effective solution for measuring position and orientation of an any carrier, including UAVs. Distinctive features are compactness and low weight. It includes a triple-frequency, quadruple-system GNSS receiver and low-weight MEMS IMU.

AGM-PS.M could be integrated with aerial surveying systems, laser scanning systems and with any other equipment that requires precise positioning.

Extremely compact and lightweight solution.

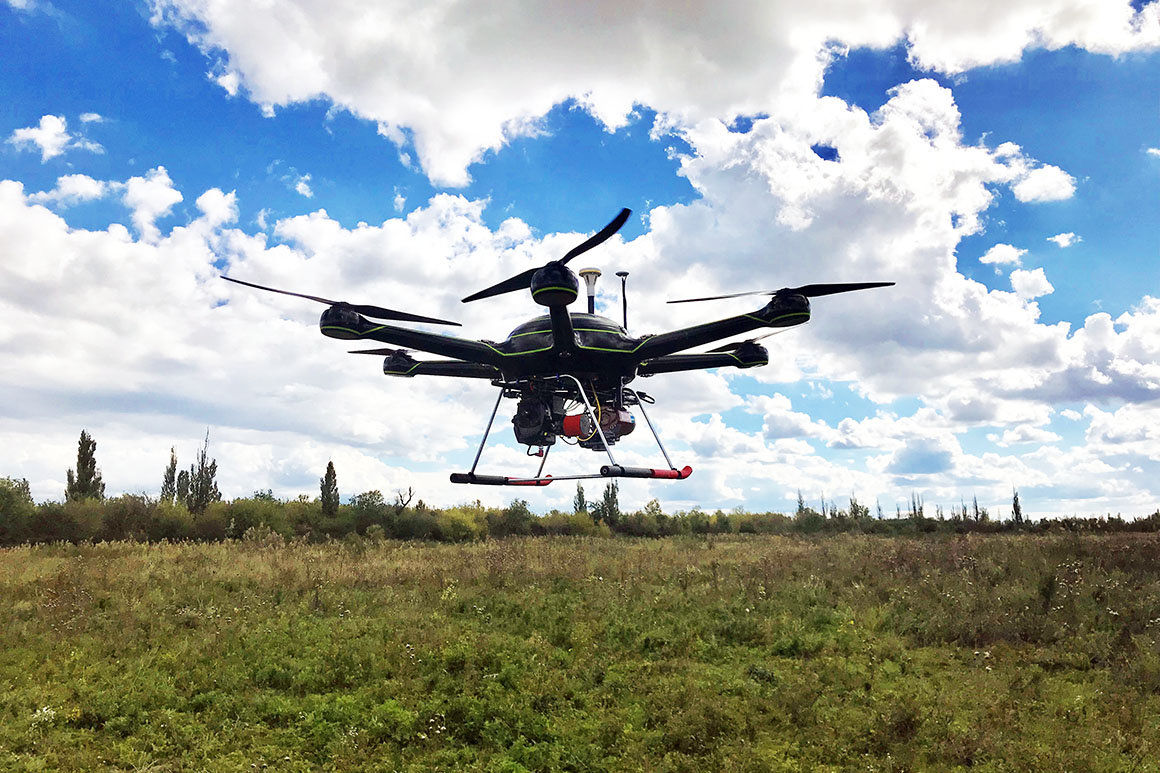

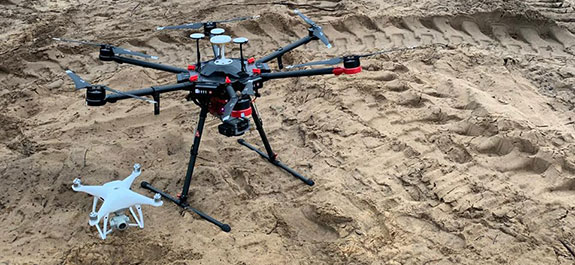

AGM-PS.M soluton makes it possible to obtain the trajectory of the carrier, including under conditions of poor GNSS signal. Due to its compact size and low weight, the AGM-PS.M is excellently suited for installation on unmanned aerial vehicles (UAVs) both independently and in conjunction with a wearable payload, like aerial cameras, airborne scanners, etc.

Specifications

Inertial navigation solution AGM-PS.M.

GNSS
Systems of satellite navigation GPS,GLONASS,BeiDou,Galileo
GNSS data recording frequency 5-20 Hz
IMU
Gyros technology MEMS
IMU data recording frequency 200 Hz
Weight 100 gm
Accuracy*
Position, m 0.03
Velocity, m\s up to 0.007
Roll\Pitch,° up to 0.007
Heading,° up to 0.021
*detailed information on request
